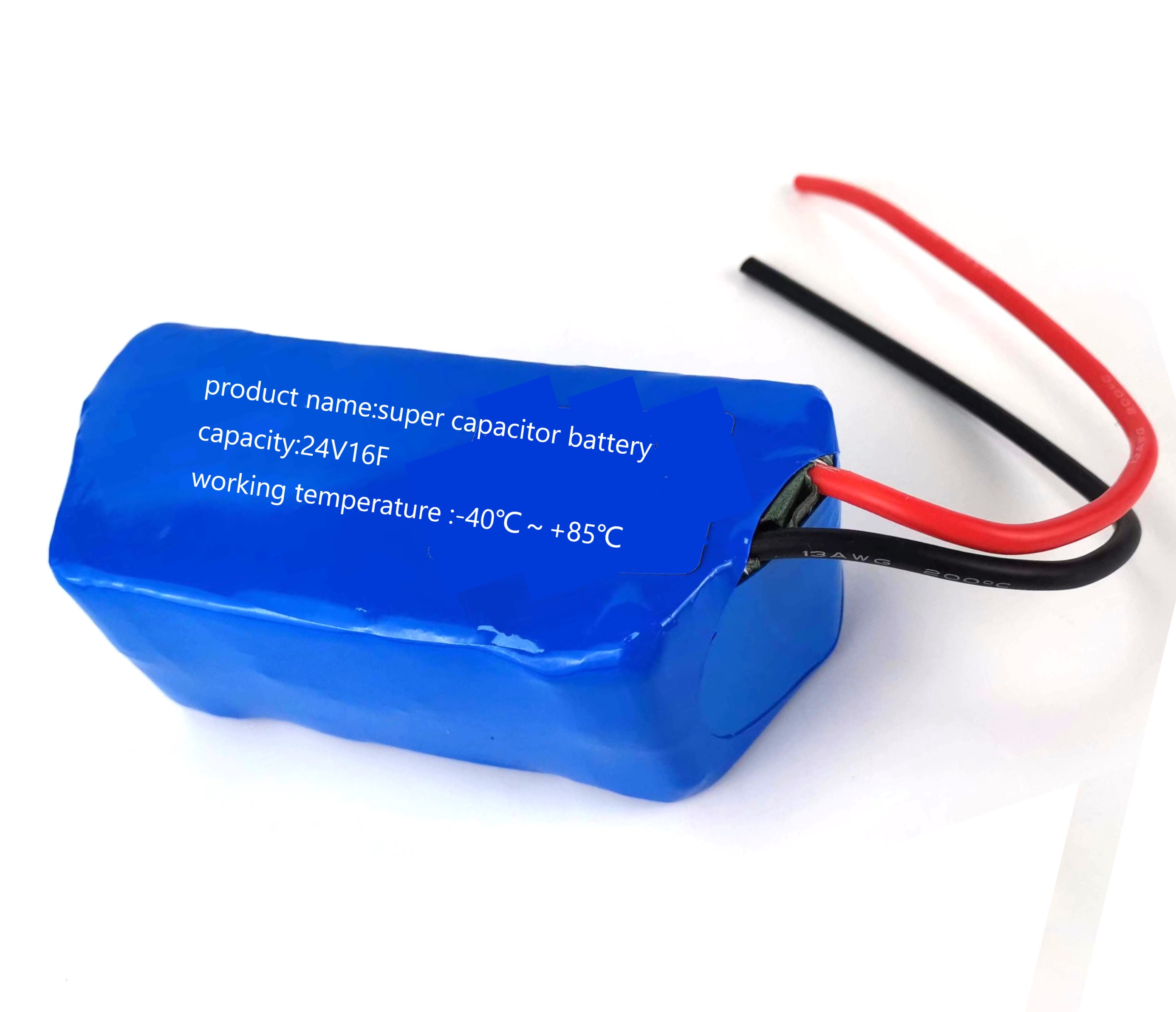

High voltage supercapacitor

High voltage supercapacitor

  • Cname:Capacitor Module
  • Views:Times
  • Release date:2023-02-24 14:56:51
  • Content
  • Features
  • Parameter

Product Description

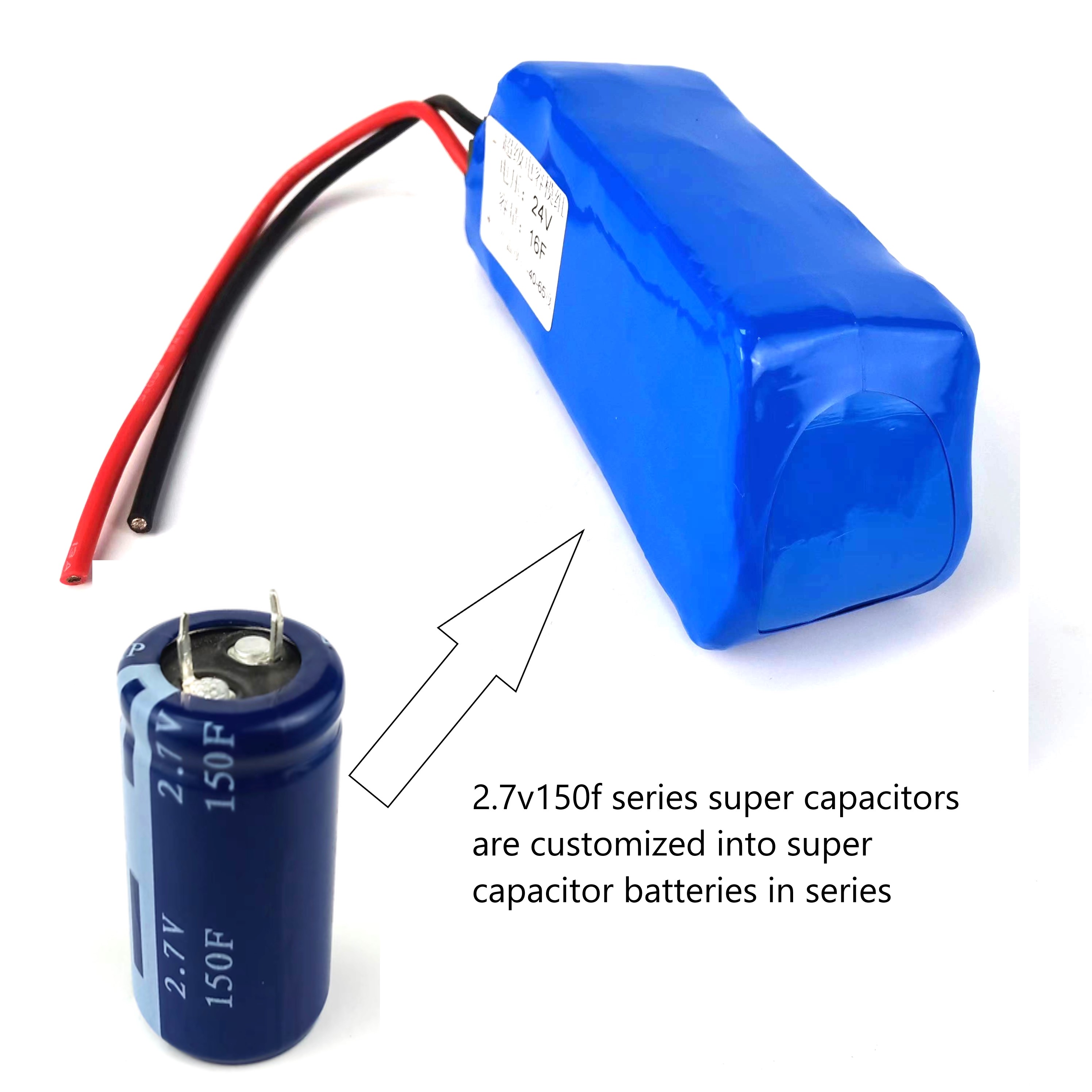

        Supercapacitor module is to connect several supercapacitors in series to cooperate with voltage equalization and discharge voltage stabilization system. 1. The supercapacitor module is a green energy (activated carbon) and does not pollute the environment. 2. The super capacitor module has a long service life (100000 times of charging). 3. Super capacitor module has fast charging speed (0.3 seconds -15 minutes) 4. Super capacitor module has high charging and discharging efficiency (98%); 5. Super capacitor module with high power density (10.000w/kg) 6. The super capacitor module is completely maintenance free, 7. Super capacitor module has strong energy recovery in electric bus, with emergency braking energy recovery up to 75% 8. Low relative cost of supercapacitor module 9. The super capacitor module also has the functions of over temperature and over voltage automatic alarm, which can better protect other equipment and ensure the normal operation of the equipment;

Please contact me to customize your supercapacitor module

Specification

working temperature

-40°C to +85°C

Storage temperature

-40°C to +70°C

capacitance

16F

ratedvoltage

24V

temperature characteristic

 Capacitance change:+Within ± 5% of theinitial
measured value at 25 ° C (-40 ° C to+ 65 ° C)

endurance

Internal resistance: +25 ℃ (-40 ℃) within ± 50% of the initial measured value

At rated voltage and MAX operating temperature

After 1000 hours: capacitance change: within ± 30% of the initial rated value

lifetime

500,000 times After cycle

1/2 rated voltage from rated voltage to 25 ° C

Capacitance change: within ± 30% of initial rated value

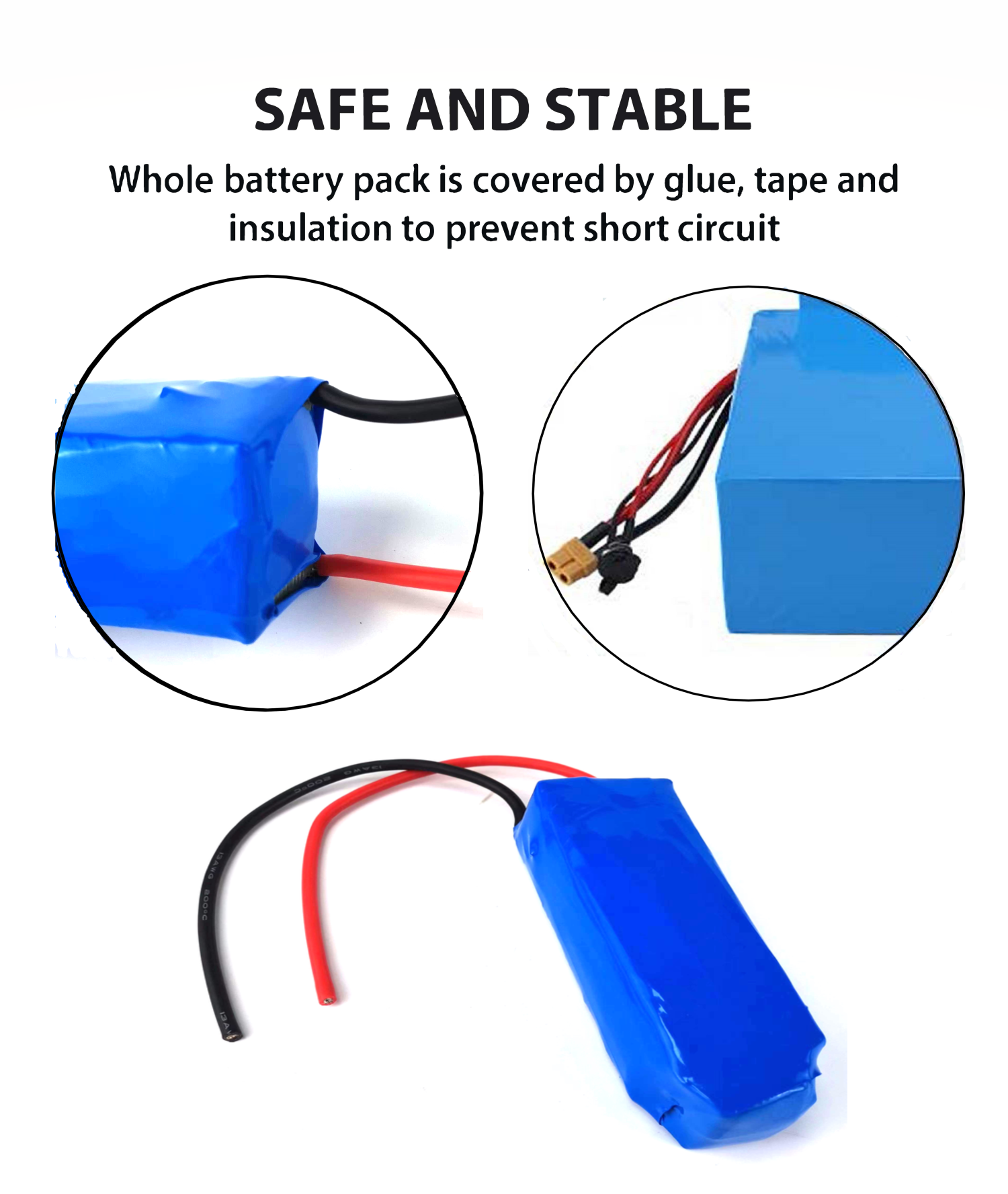

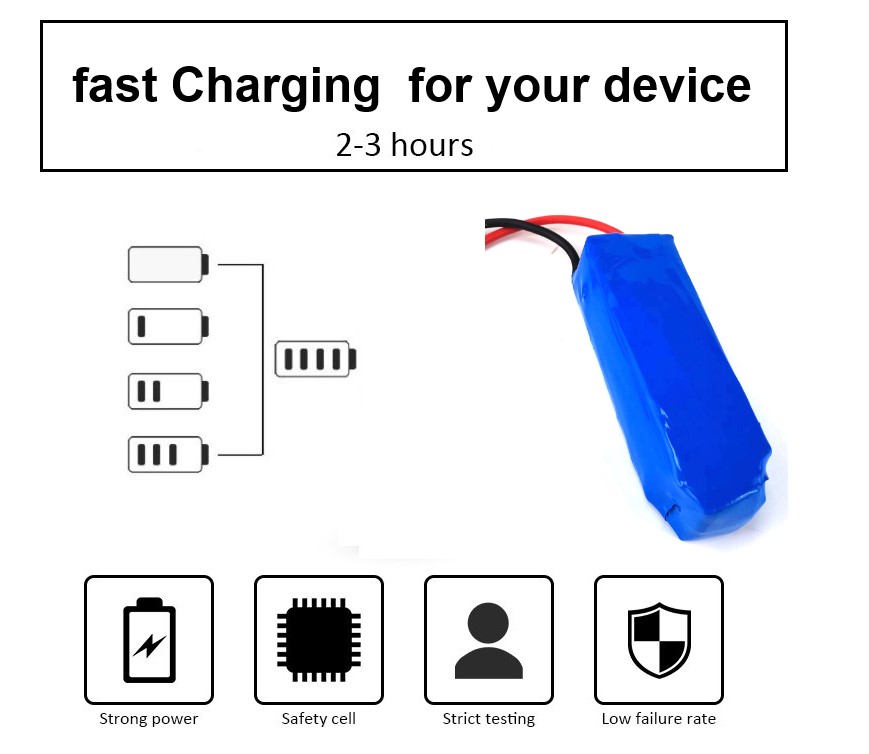

Details Images


product application

Fast charging application, charging in a few seconds and discharging in a few minutes. For example, electric tools, electric toys; In the UPS system, the super capacitor provides instantaneous power output as a supplement to the standby power supply of the engine or other uninterruptible systems; Applied to energy sources with sufficient energy and insufficient power, such as solar energy; Power support when the bus is switched from one power source to another; Low current, continuous discharge for a long time, such as backup power supply of computer memory. It is widely used in energy storage system, hybrid electric vehicle, rail transit, heavy machinery, wind power pitch, etc
