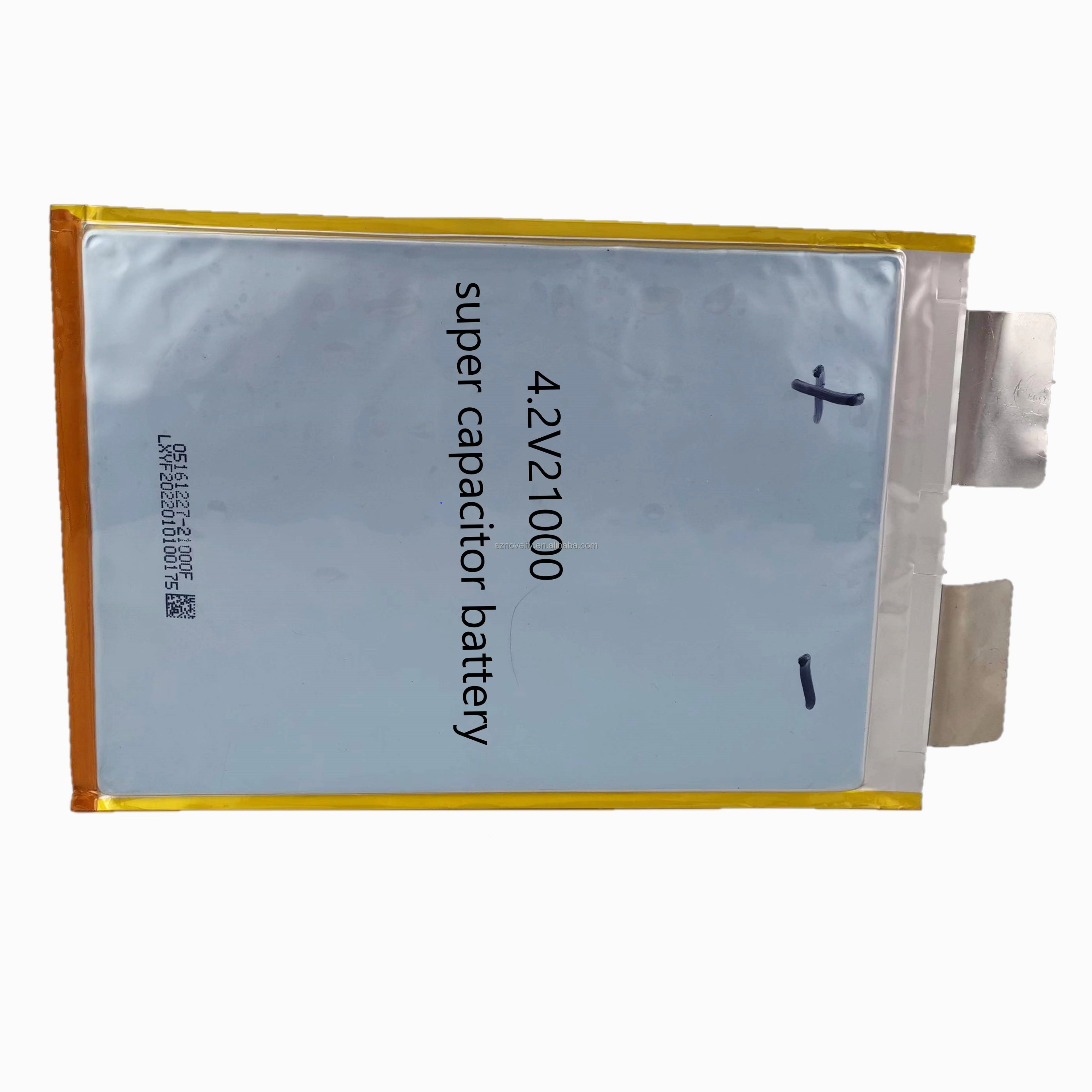

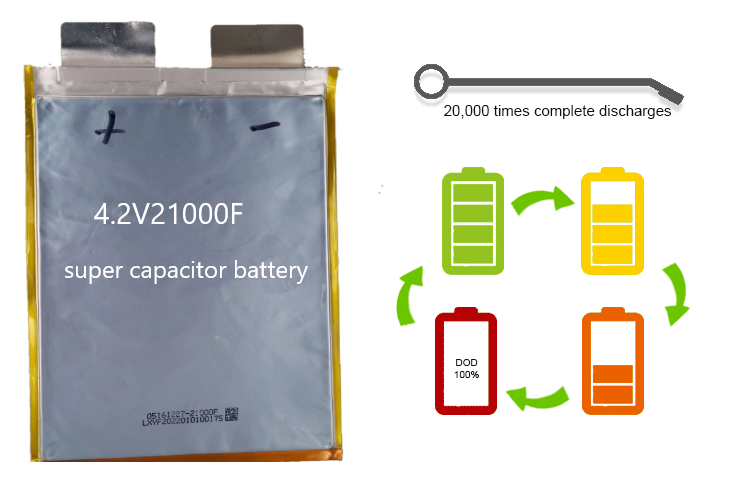

Soft pack supercapacitor monomer

Product introduction：

         Shenzhen Yukun Technology Co., Ltd. is a technology company integrating the R&D, manufacturing and sales of lithium ion capacitors, supercapacitors, supercapacitor module batteries and ultrafast charging storage systems.The utility model relates to a flexible supercapacitor monomer and a supercapacitor module. The flexible supercapacitor monomer comprises a shell, a cell, and a positive and negative deflector connected with the cell respectively; There are more than two sets of shells, and each set of shells is arranged from inside to outside; In each group of shells, the shell at the innermost layer is a shell, and the thickness of one shell is greater than that of any other group of shells; A shell is wrapped on the outside of the cell, and the positive and negative deflectors extend from the inside of the shell to the outside of each group of shells; One shell is connected with the positive deflector, and the other shell is connected with the negative deflector. The utility model provides efficient protection for leakage through the setting of multiple protective structures from inside to outside, thus significantly enhancing the safety and stability of the supercapacitor monomer, thus making the mutual insulation between the monomer inside the module sufficient, more effectively avoiding leakage corrosion damage, and extending its service life.

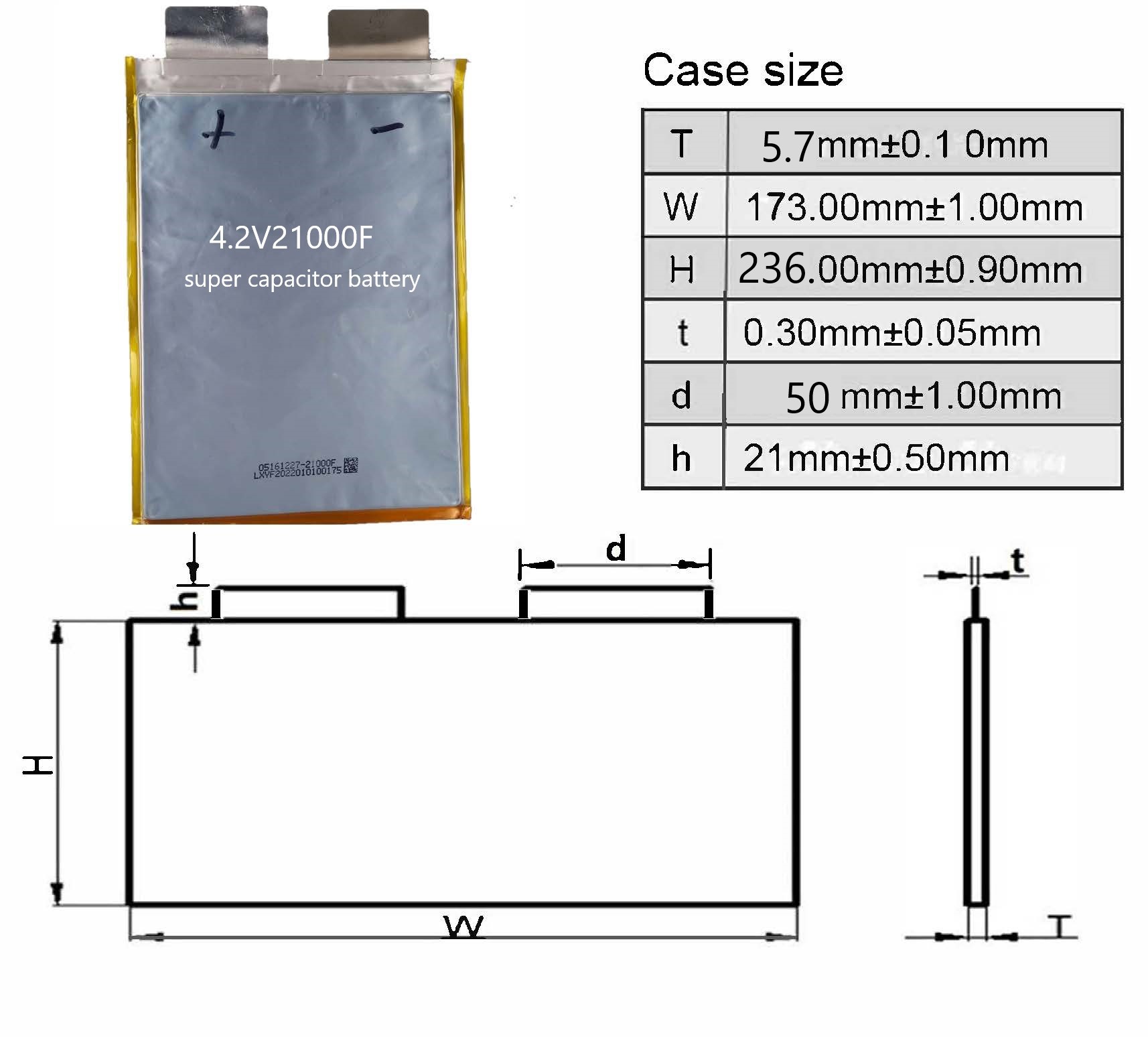

Specifications
